IXFT100N30X3HV

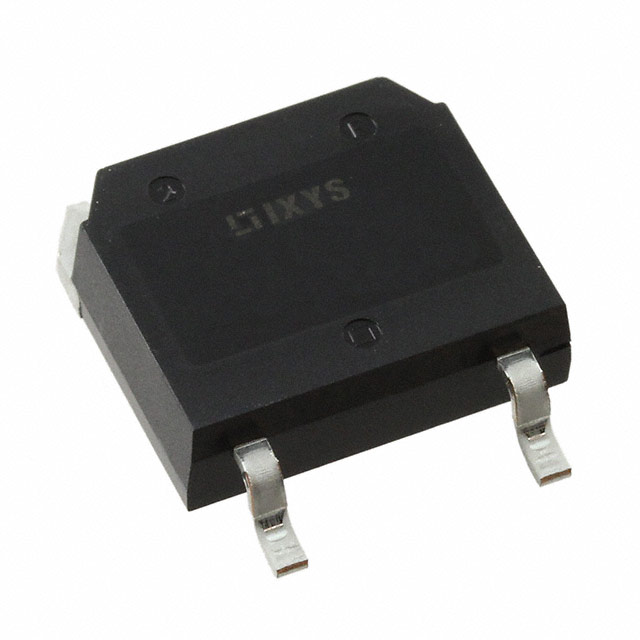

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXFT100N30X3HV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXFT100N30X3HV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXFT100N30X3HV |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | 300V/100A ULTRA JUNCTION X3-CLAS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $4.621 | $3.789 | $3.419 | $2.865 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXFT100N30X3HV | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | 300V/100A ULTRA JUNCTION X3-CLAS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11523 pcs | Data sheet | IXFH100N30X3, IXFT100N30X3HV |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4.5V @ 4mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-268HV | Series | HiPerFET™ |
| Rds On (Max) @ Id, Vgs | 13.5 mOhm @ 50A, 10V | Power Dissipation (Max) | 480W (Tc) |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 7.66nF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 122nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 300V |
| Detailed Description | N-Channel 300V 100A (Tc) 480W (Tc) Surface Mount TO-268HV | Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
