IXFH30N50Q3

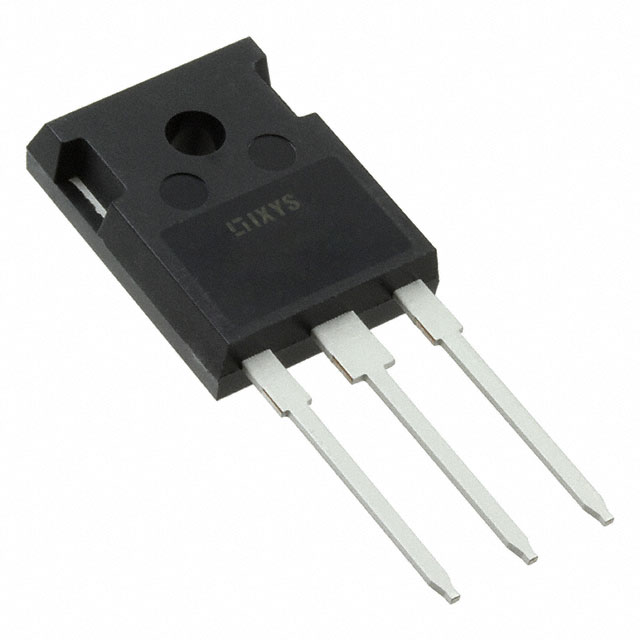

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXFH30N50Q3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXFH30N50Q3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXFH30N50Q3 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 500V 30A TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $4.183 | $3.431 | $3.096 | $2.594 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXFH30N50Q3 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 500V 30A TO-247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15245 pcs | Data sheet | IXFx30N50Q3 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 6.5V @ 4mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-247AD (IXFH) | Series | HiPerFET™ |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 15A, 10V | Power Dissipation (Max) | 690W (Tc) |
| Packaging | Tube | Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 3200pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 62nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 500V | Detailed Description | N-Channel 500V 30A (Tc) 690W (Tc) Through Hole TO-247AD (IXFH) |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
