IXFC26N50

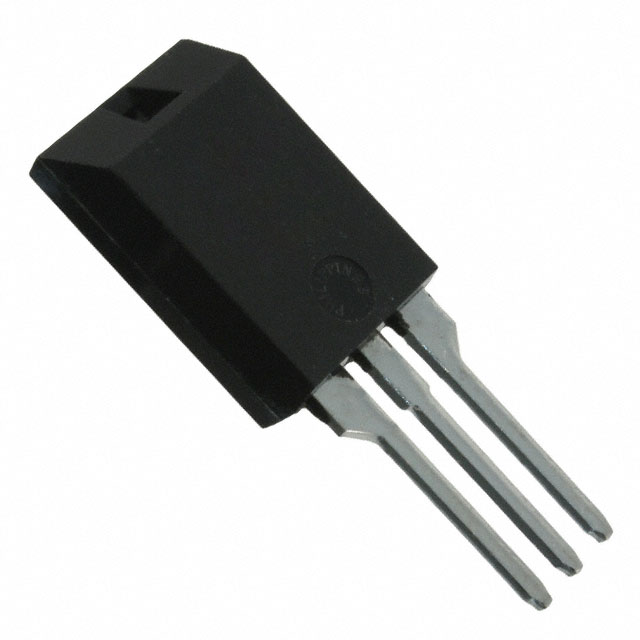

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXFC26N50 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXFC26N50 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXFC26N50 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 500V 23A ISOPLUS220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXFC26N50 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 500V 23A ISOPLUS220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4450 pcs | Data sheet | IXFC24N50, IXFC26N50 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 4mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | ISOPLUS220™ | Series | HiPerFET™ |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 13A, 10V | Power Dissipation (Max) | 230W (Tc) |
| Packaging | Tube | Package / Case | ISOPLUS220™ |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 4200pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 135nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 500V |
| Detailed Description | N-Channel 500V 23A (Tc) 230W (Tc) Through Hole ISOPLUS220™ | Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
