IXBT42N300HV

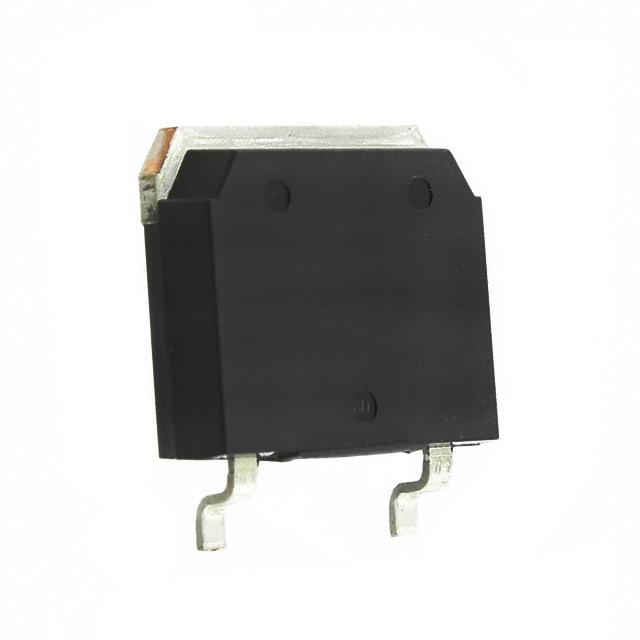

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXBT42N300HV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXBT42N300HV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXBT42N300HV |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 3000V 42A 357W TO268 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 30 pcs | ||||
|---|---|---|---|---|---|
| $13.36 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXBT42N300HV | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT 3000V 42A 357W TO268 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2578 pcs | Data sheet | IXB(T,H)42N300HV |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 3000V |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 42A | Test Condition | 1500V, 42A, 20 Ohm, 15V |
| Td (on/off) @ 25°C | 72ns/445ns | Switching Energy | - |
| Supplier Device Package | TO-268 | Series | BIMOSFET™ |
| Reverse Recovery Time (trr) | 1.7µs | Power - Max | 500W |
| Packaging | Tube | Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | - | Gate Charge | 200nC |
| Detailed Description | IGBT 3000V 104A 500W Surface Mount TO-268 | Current - Collector Pulsed (Icm) | 400A |
| Current - Collector (Ic) (Max) | 104A |
