Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > DSEC30-12A

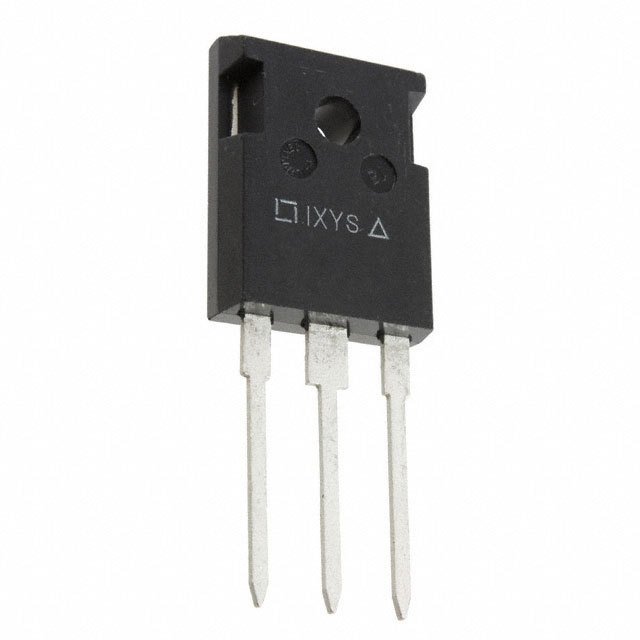

DSEC30-12A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DSEC30-12A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DSEC30-12A
Manufacturer	IXYS Corporation
Description	DIODE ARRAY GP 1200V 15A TO247AD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 37250 pcs
Reference Price (In US Dollars)	1 pcs	30 pcs	120 pcs	510 pcs	1020 pcs
Reference Price (In US Dollars)	$1.896	$1.525	$1.39	$1.125	$0.949

Product parameter
Data sheet

Product parameter

Part Number	DSEC30-12A	Manufacturer	IXYS Corporation
Description	DIODE ARRAY GP 1200V 15A TO247AD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37250 pcs	Data sheet	DSEC30-12A
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	2.74V @ 15A
Voltage - DC Reverse (Vr) (Max)	1200V	Supplier Device Package	TO-247AD
Speed	Fast Recovery = 200mA (Io)	Series	HiPerFRED™
Reverse Recovery Time (trr)	40ns	Packaging	Tube
Package / Case	TO-3P-3 Full Pack	Other Names	DSEC3012A
Operating Temperature - Junction	-55°C ~ 175°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Standard 1200V 15A Through Hole TO-3P-3 Full Pack
Current - Reverse Leakage @ Vr	100µA @ 1200V	Current - Average Rectified (Io) (per Diode)	15A
