Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > DPG20C300PN

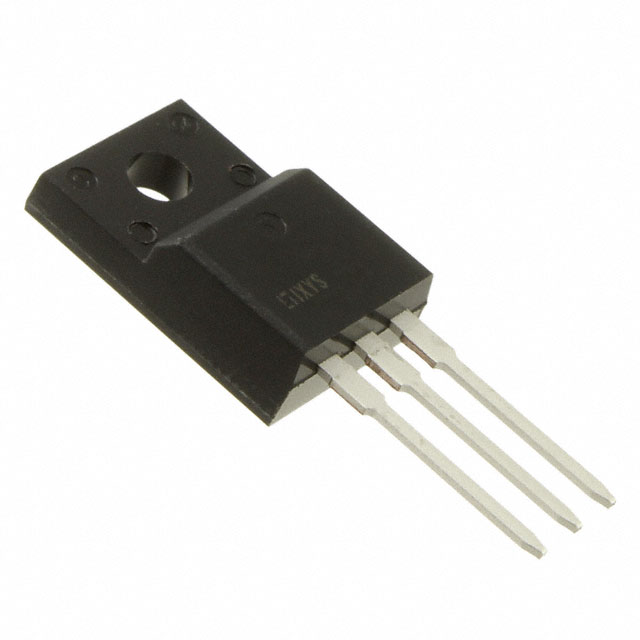

DPG20C300PN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPG20C300PN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DPG20C300PN
Manufacturer	IXYS Corporation
Description	DIODE ARRAY GP 300V 10A TO220FP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 78200 pcs
Reference Price (In US Dollars)	1 pcs	50 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.647	$0.521	$0.469	$0.365	$0.302

Product parameter
Data sheet

Product parameter

Part Number	DPG20C300PN	Manufacturer	IXYS Corporation
Description	DIODE ARRAY GP 300V 10A TO220FP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	78200 pcs	Data sheet	DPG20C300PN
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.27V @ 10A
Voltage - DC Reverse (Vr) (Max)	300V	Supplier Device Package	TO-220ABFP
Speed	Fast Recovery = 200mA (Io)	Series	HiPerFRED²™
Reverse Recovery Time (trr)	35ns	Packaging	Tube
Package / Case	TO-220-3 Full Pack, Isolated Tab	Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	32 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Standard 300V 10A Through Hole TO-220-3 Full Pack, Isolated Tab	Current - Reverse Leakage @ Vr	1µA @ 300V
Current - Average Rectified (Io) (per Diode)	10A
