Home > Products > Relays > Power Relays, Over 2 Amps > RV8H-1L1-AD24-C1D2

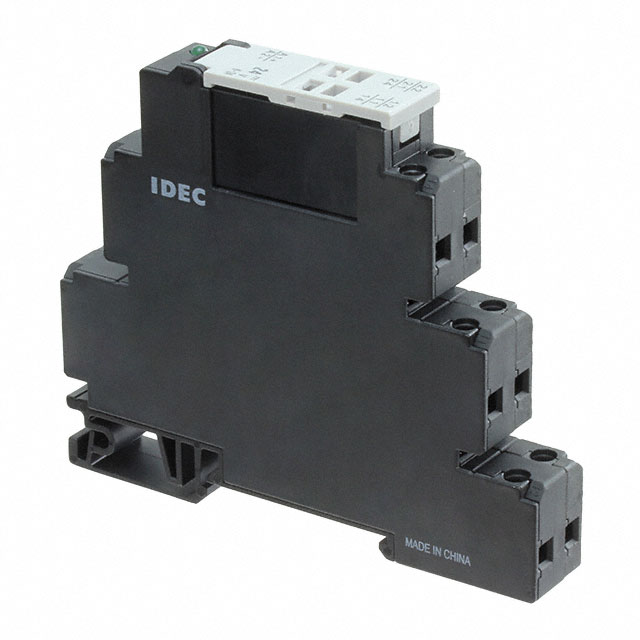

RV8H-1L1-AD24-C1D2

RV8H-1L1-AD24-C1D2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RV8H-1L1-AD24-C1D2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RV8H-1L1-AD24-C1D2
Manufacturer	IDEC
Description	RELAY GEN PURPOSE SPDT 16A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 5298 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$8.471	$8.048	$7.624	$7.20
	$6.777	$6.353	$5.93

Product parameter
Data sheet

Product parameter

Part Number	RV8H-1L1-AD24-C1D2	Manufacturer	IDEC
Description	RELAY GEN PURPOSE SPDT 16A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5298 pcs	Data sheet	RV8 Series Datasheet
Category	Relays	Turn On Voltage (Max)	19.2 VAC/DC
Turn Off Voltage (Min)	1.68 VAC/DC	Termination Style	Screw Terminal
Switching Voltage	250VAC - Nom	Series	RV8
Release Time	15ms	Relay Type	General Purpose with Socket
Packaging	Bulk	Other Names	1885-1778
Operating Temperature	-40°C ~ 55°C	Operate Time	15ms
Mounting Type	DIN Rail	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	General Purpose with Socket Relay SPDT (1 Form C) 24VAC/DC Coil DIN Rail	Contact Rating (Current)	16A
Contact Material	Silver Nickel (AgNi)	Contact Form	SPDT (1 Form C)
Coil Voltage	24VAC/DC	Coil Type	Non Latching
Coil Resistance	1.14 kOhms	Coil Power	500 mW
Coil Current	21.0mA
