Home > Products > Switches > Snap Action, Limit Switches > ZM50D10B01

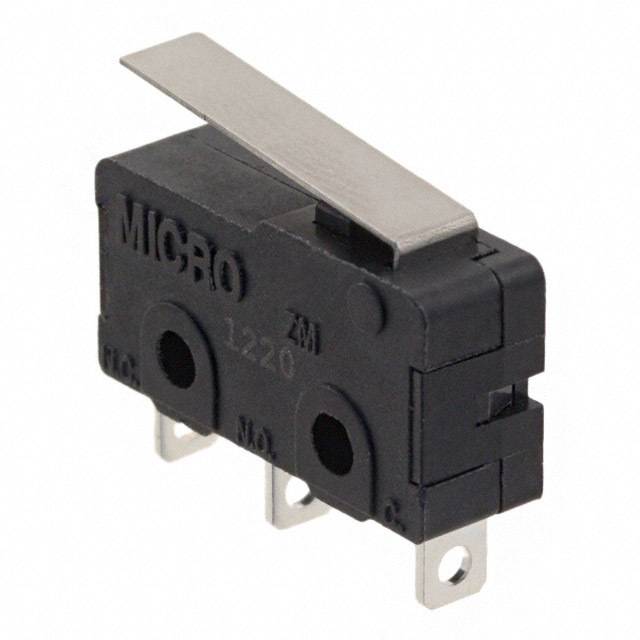

ZM50D10B01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZM50D10B01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZM50D10B01
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 103540 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.978	$0.636	$0.578	$0.52	$0.487
	$0.46	$0.431	$0.412	$0.377

Product parameter
Data sheet

Product parameter

Part Number	ZM50D10B01	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	103540 pcs	Data sheet	ZM, ZM1 Series Datasheet Basic, Toggle, Rocker Switches Range Guide Basic Switches Line Guide Z Series Install Instr
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	ZM	Release Force	6.000gf
Pretravel	0.140" (3.6mm)	Packaging	Bulk
Overtravel	0.025" (0.6mm)	Other Names	480-5335 ZM50D10B01-ND
Operating Temperature	-40°C ~ 120°C	Operating Position	0.465" (11.8mm)
Operating Force	25gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.032" (0.81mm)
Current Rating	5A (AC)	Circuit	SPDT
Actuator Type	Lever, Straight
