Home > Products > Switches > Snap Action, Limit Switches > ZM10B70A01

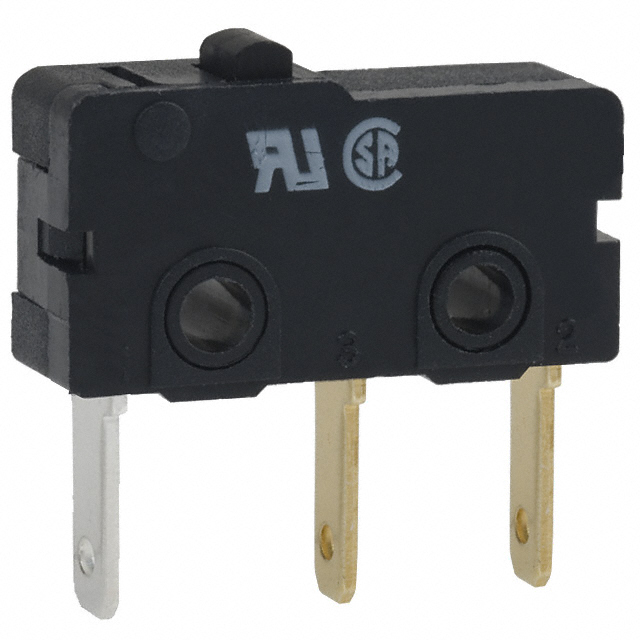

ZM10B70A01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZM10B70A01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZM10B70A01
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 63361 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.549

Product parameter
Data sheet

Product parameter

Part Number	ZM10B70A01	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63361 pcs	Data sheet	ZM, ZM1 Series Datasheet Basic, Toggle, Rocker Switches Range Guide Basic Switches Line Guide Z Series Install Instr
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	ZM
Release Force	8.000gf	Pretravel	0.043" (1.1mm)
Packaging	Bulk	Overtravel	0.015" (0.4mm)
Other Names	480-2344	Operating Temperature	-40°C ~ 120°C
Operating Position	0.449" (11.4mm)	Operating Force	60gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	10,000 Cycles
Differential Travel	0.008" (0.2mm)	Current Rating	100mA (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
