Home > Products > Switches > Snap Action, Limit Switches > ZD30S60C02-Z

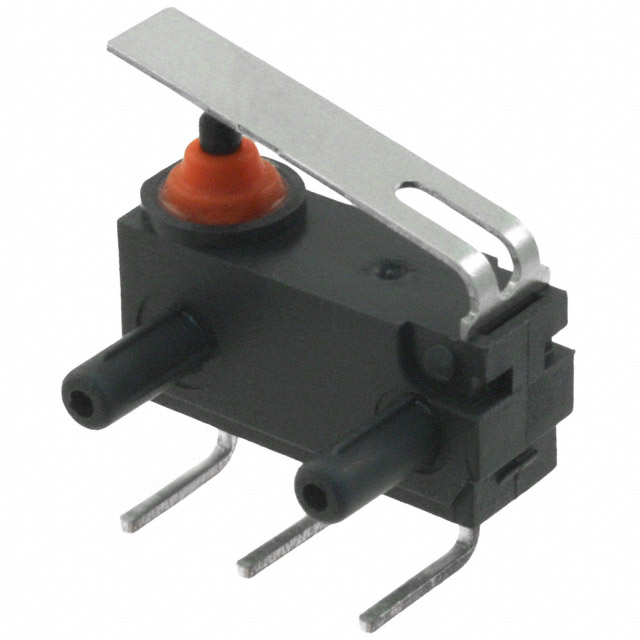

ZD30S60C02-Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZD30S60C02-Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZD30S60C02-Z
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 31334 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$1.00

Product parameter
Data sheet

Product parameter

Part Number	ZD30S60C02-Z	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31334 pcs	Data sheet	Basic, Toggle, Rocker Switches Range Guide Basic Switches Line Guide Z Series Install Instr ZD30S60C02-Z Drawing ZD Series Datasheet
Category	Switches	Voltage Rating - DC	12V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-Mom	Series	ZD
Release Force	25gf	Pretravel	0.138" (3.5mm)
Packaging	Bulk	Overtravel	0.053" (1.35mm)
Other Names	480-3630 ZD30S60C02Z	Operating Temperature	-40°C ~ 120°C
Operating Position	0.291" (7.4mm)	Operating Force	195gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP00	Features	Support Posts
Electrical Life	6,000 Cycles	Differential Travel	0.025" (0.6mm)
Current Rating	100mA (AC), 3A (DC)	Circuit	SPDT
Actuator Type	Lever, Straight
