Home > Products > Switches > Snap Action, Limit Switches > V9-25S43D800

V9-25S43D800

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V9-25S43D800 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	V9-25S43D800
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 25A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5774 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	V9-25S43D800	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 25A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5774 pcs	Data sheet	V9 Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Mom
Series	V9	Release Force	-
Pretravel	0.075" (1.9mm)	Packaging	Bulk
Overtravel	0.026" (0.7mm)	Other Names	480-2402
Operating Temperature	-25°C ~ 125°C	Operating Position	0.567" (14.4mm)
Operating Force	510gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	5,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	6,000 Cycles
Differential Travel	0.047" (1.2mm)	Current Rating	25A (AC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)

Related products
Related news

Related products

V9-25S43D906A Image

Part#:~~V9-25S43D906A~~
Manufacturers:~~Honeywell Sensing and Productivity Solutions~~
Description:~~SWITCH SNAP ACTION SPDT 25A 125V~~
In Stock:~~4897~~

Part#:~~V15W-DZ200A02-AW1~~
Manufacturers:~~Honeywell Sensing and Productivity Solutions~~
Description:~~SWITCH SNAP ACT SPDT 100MA 125V~~
In Stock:~~13758~~

~~$2.252/pcs~~RFQ

V9-20S23D900 Image

Part#:~~V9-20S23D900~~
Manufacturers:~~Honeywell Sensing and Productivity Solutions~~
Description:~~SWITCH SNAP ACT SPST-NO 20A 125V~~
In Stock:~~4764~~

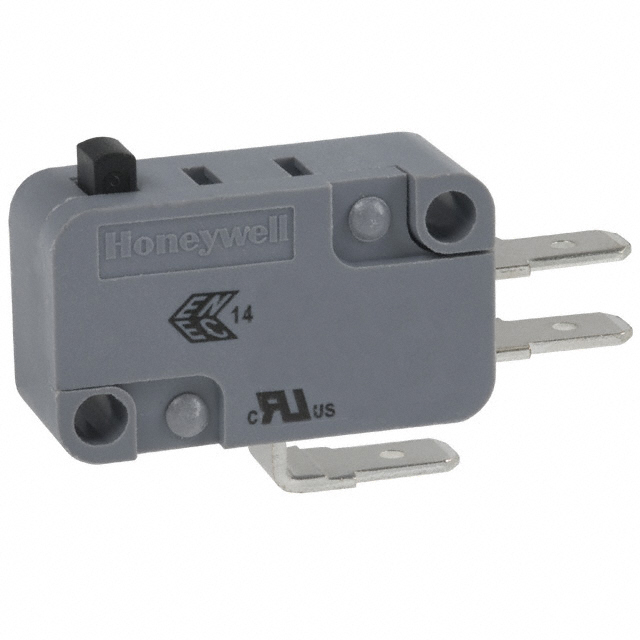

V9-11S43D800 Image
