Home > Products > Switches > Snap Action, Limit Switches > LSF1A

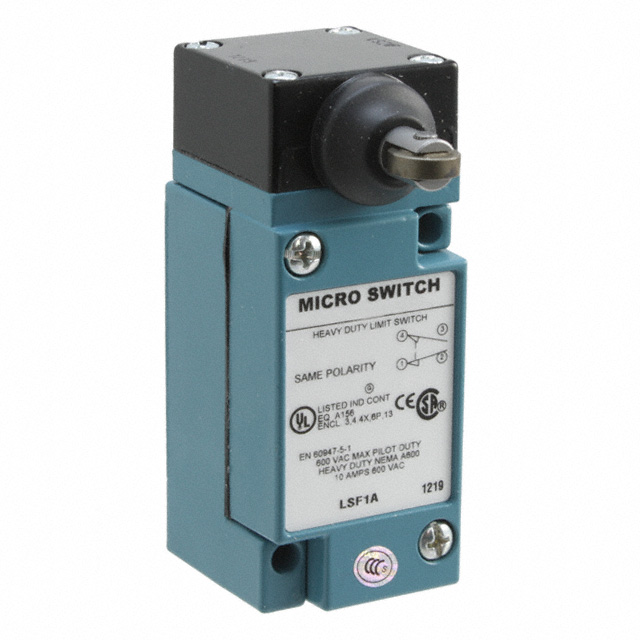

LSF1A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSF1A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LSF1A
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 529 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$67.305

Product parameter
Data sheet

Product parameter

Part Number	LSF1A	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	529 pcs	Data sheet	HDLS Series Datasheet
Category	Switches	Voltage Rating - DC	115V
Voltage Rating - AC	120V	Termination Style	Plug In
Switch Function	On-Mom	Series	HDLS
Release Force	-	Pretravel	0.100" (2.5mm)
Packaging	Bulk	Overtravel	0.190" (4.8mm)
Other Names	480-5019 LSF1A-ND	Operating Temperature	-12°C ~ 93°C
Operating Position	-	Operating Force	2720gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.025" (0.6mm)	Current Rating	10A (AC), 800mA (DC)
Circuit	SPDT (DB/DM)	Actuator Type	Side Roller Plunger
