Home > Products > Switches > Snap Action, Limit Switches > LSD3K

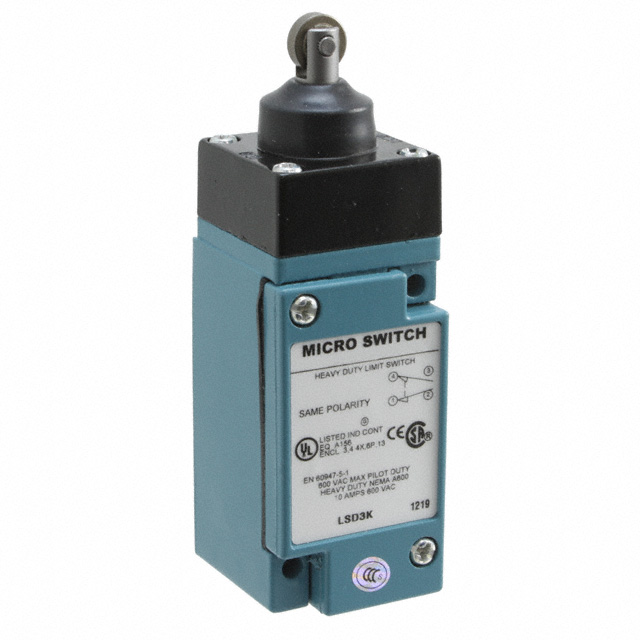

LSD3K

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSD3K with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LSD3K
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 727 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$63.702	$60.062	$56.422	$52.782

Product parameter
Data sheet

Product parameter

Part Number	LSD3K	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	727 pcs	Data sheet	HDLS Series Datasheet
Category	Switches	Voltage Rating - DC	115V
Voltage Rating - AC	120V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	HDLS
Release Force	-	Pretravel	0.071" (1.8mm)
Packaging	Bulk	Overtravel	0.190" (4.8mm)
Other Names	480-5015 LSD3K-ND	Operating Temperature	-12°C ~ 93°C
Operating Position	-	Operating Force	1814gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.016" (0.4mm)	Current Rating	10A (AC), 800mA (DC)
Circuit	SPDT (DB/DM)	Actuator Type	Roller Plunger
