Home > Products > Switches > Snap Action, Limit Switches > LSA7L

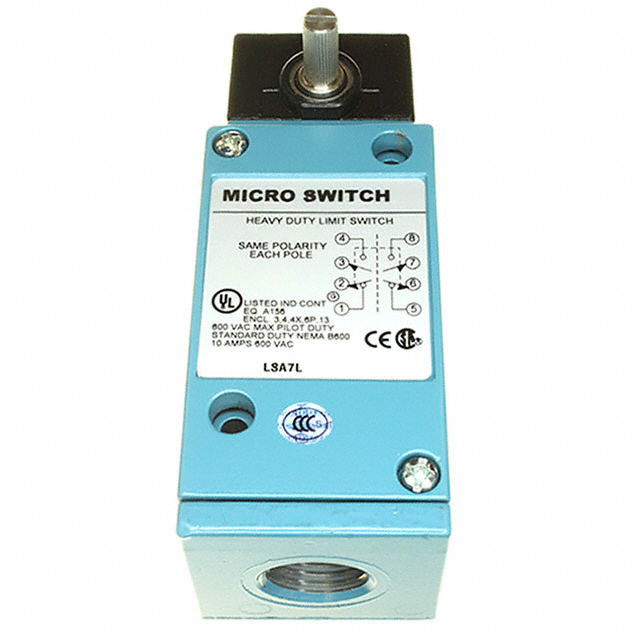

LSA7L

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSA7L with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LSA7L
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION DPDT 10A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 700 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$66.581	$62.776	$58.971	$55.166

Product parameter
Data sheet

Product parameter

Part Number	LSA7L	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION DPDT 10A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	700 pcs	Data sheet	HDLS Series Datasheet
Category	Switches	Voltage Rating - DC	115V
Voltage Rating - AC	120V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	HDLS
Release Force	-	Pretravel	15°
Packaging	Bulk	Overtravel	60°
Other Names	480-2931	Operating Temperature	-12°C ~ 121°C
Operating Position	-	Operating Force	46gfm
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	7°	Current Rating	10A (AC), 800mA (DC)
Circuit	DPDT (DB/DM)	Actuator Type	Side Rotary - No Lever
