Home > Products > Switches > Snap Action, Limit Switches > BZLN-LH5

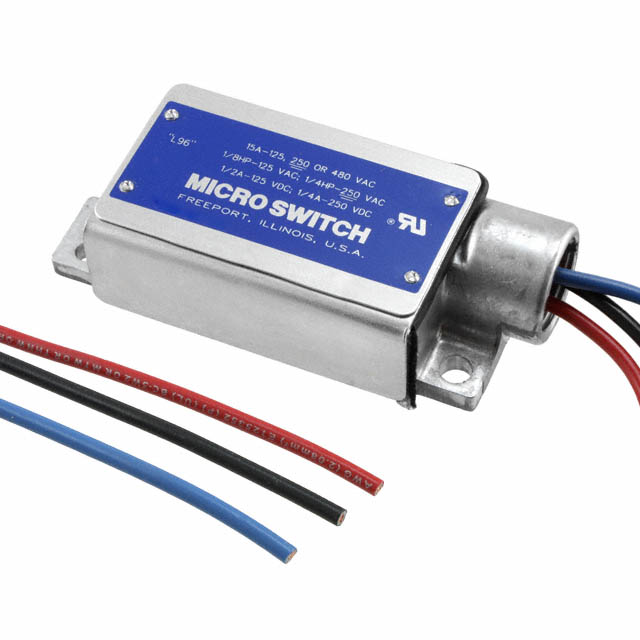

BZLN-LH5

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZLN-LH5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZLN-LH5
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 447 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$85.636	$73.784	$70.27	$67.806

Product parameter
Data sheet

Product parameter

Part Number	BZLN-LH5	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	447 pcs	Data sheet	LN Series Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Wire Leads
Switch Function	On-Mom	Series	LN
Release Force	454gf	Pretravel	0.030" (0.8mm)
Packaging	Bulk	Overtravel	0.203" (5.15mm)
Other Names	480-4754 BZLN-LH5-ND BZLNLH5	Operating Temperature	-32°C ~ 55°C
Operating Position	1.640" (41.65mm)	Operating Force	2268gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Actuator Mounted Left Side
Electrical Life	-	Differential Travel	0.004" (0.1mm)
Current Rating	15A (AC), 500mA (DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
