Home > Products > Switches > Snap Action, Limit Switches > BZG1-2RN

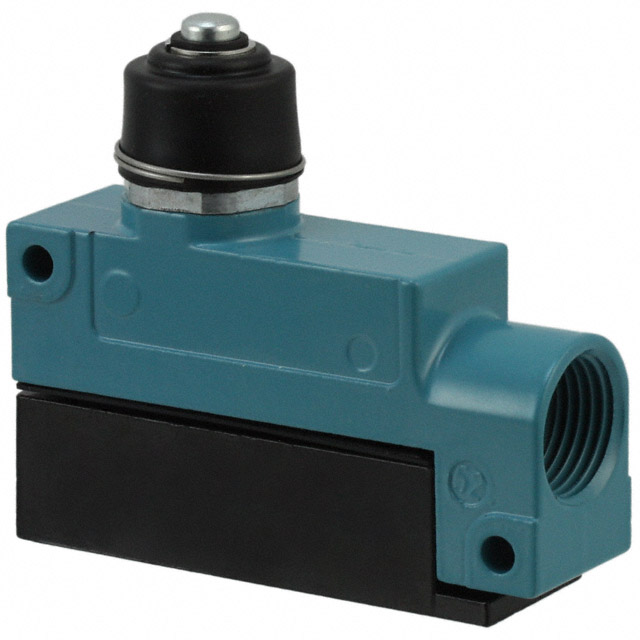

BZG1-2RN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZG1-2RN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZG1-2RN
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1431 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$36.837	$31.19	$29.976	$28.548	$27.547

Product parameter

Product parameter

Part Number	BZG1-2RN	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1431 pcs	Data sheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZG
Release Force	113gf	Pretravel	0.078" (2.0mm)
Packaging	Bulk	Overtravel	0.219" (5.6mm)
Other Names	480-3699 BZG1-2RN-ND BZG12RN	Operating Temperature	-32°C ~ 71°C
Operating Position	1.369" (34.8mm)	Operating Force	255 ~ 680gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Actuator Seal Boot
Electrical Life	-	Differential Travel	0.002" (0.05mm)
Current Rating	15A (AC), 500mA (DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
