Home > Products > Switches > Snap Action, Limit Switches > BZ-RW84414-A2

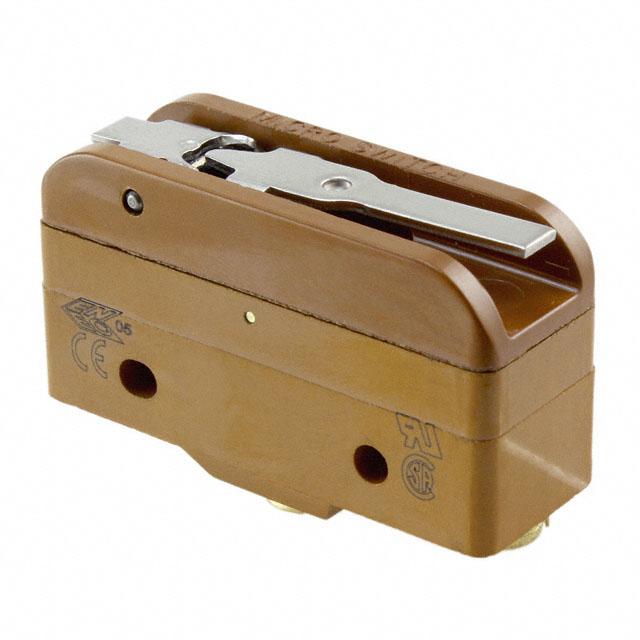

BZ-RW84414-A2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-RW84414-A2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-RW84414-A2
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5463 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$6.014

Product parameter
Data sheet

Product parameter

Part Number	BZ-RW84414-A2	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5463 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	BZ	Release Force	-
Pretravel	0.157" (4.0mm)	Packaging	Bulk
Overtravel	0.125" (3.2mm)	Other Names	480-4785 BZ-RW84414-A2-ND BZRW84414A2
Operating Temperature	-55°C ~ 85°C	Operating Position	0.750" (19.1mm)
Operating Force	283gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	0.009" (0.23mm)
Current Rating	15A (AC)	Circuit	SPDT
Actuator Type	Lever, Straight
