Home > Products > Switches > Snap Action, Limit Switches > BZ-2RWT80

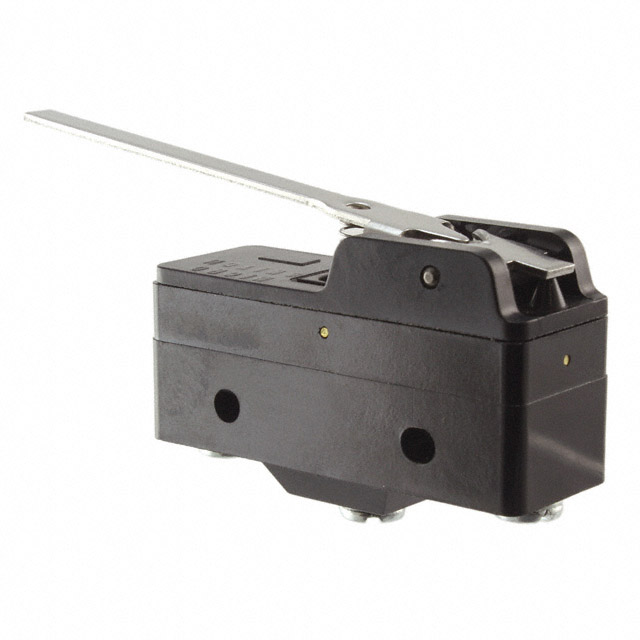

BZ-2RWT80

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2RWT80 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2RWT80
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7007 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$7.802	$5.972	$5.64	$5.285
	$5.057	$4.86	$4.628

Product parameter
Data sheet

Product parameter

Part Number	BZ-2RWT80	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7007 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZ
Release Force	14gf	Pretravel	-
Packaging	Bulk	Overtravel	0.219" (5.6mm)
Other Names	480-4694 BZ-2RWT80-ND BZ2RWT80	Operating Temperature	-55°C ~ 85°C
Operating Position	0.750" (19.1mm)	Operating Force	71gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.050" (1.3mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
