Home > Products > Switches > Snap Action, Limit Switches > BZ-2RW863

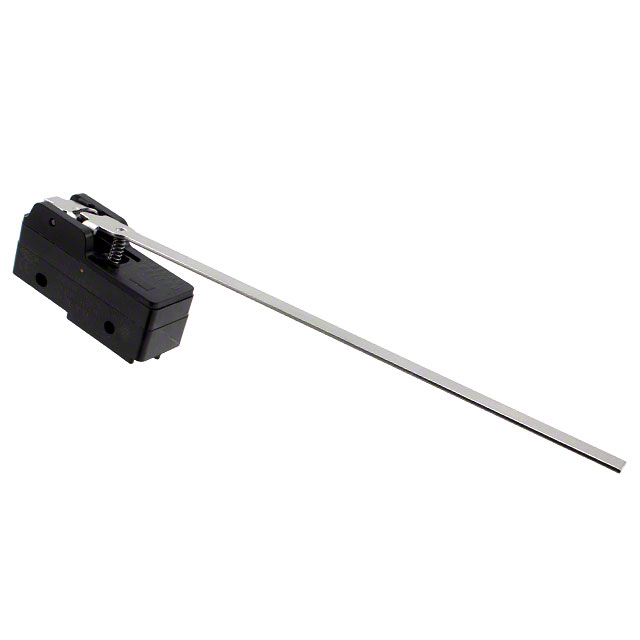

BZ-2RW863

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2RW863 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2RW863
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5913 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$6.468

Product parameter
Data sheet

Product parameter

Part Number	BZ-2RW863	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5913 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	BZ
Release Force	-	Pretravel	-
Packaging	Bulk	Overtravel	0.500" (12.7mm)
Other Names	480-4686 BZ-2RW863-ND BZ2RW863	Operating Temperature	-55°C ~ 85°C
Operating Position	0.750" (19.1mm)	Operating Force	28gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.140" (3.55mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
