Home > Products > Switches > Snap Action, Limit Switches > BZ-2RW822-D5

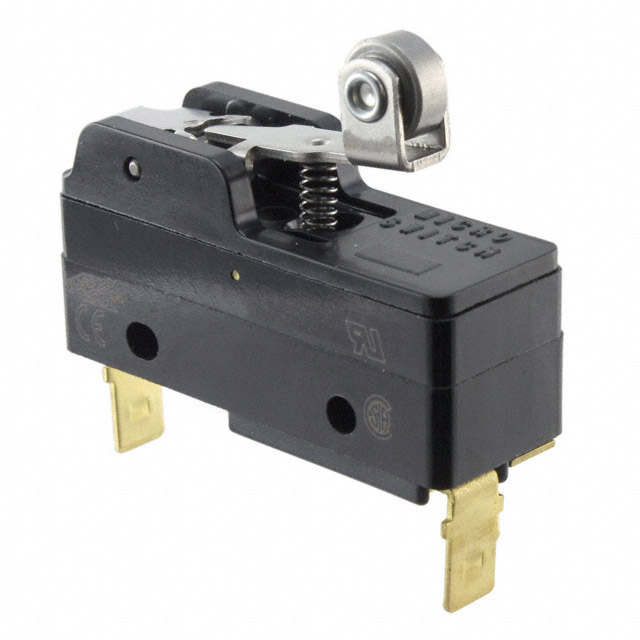

BZ-2RW822-D5

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2RW822-D5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2RW822-D5
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 4594 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$10.944	$8.706	$8.157	$7.805
	$7.501	$7.144	$6.893

Product parameter
Data sheet

Product parameter

Part Number	BZ-2RW822-D5	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4594 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Mom	Series	BZ
Release Force	43gf	Pretravel	-
Packaging	Bulk	Overtravel	0.094" (2.4mm)
Other Names	480-4661 BZ-2RW822-D5-ND BZ2RW822D5	Operating Temperature	-55°C ~ 85°C
Operating Position	1.188" (30.2mm)	Operating Force	170gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.020" (0.5mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
