Home > Products > Switches > Snap Action, Limit Switches > BZ-2RS-A2

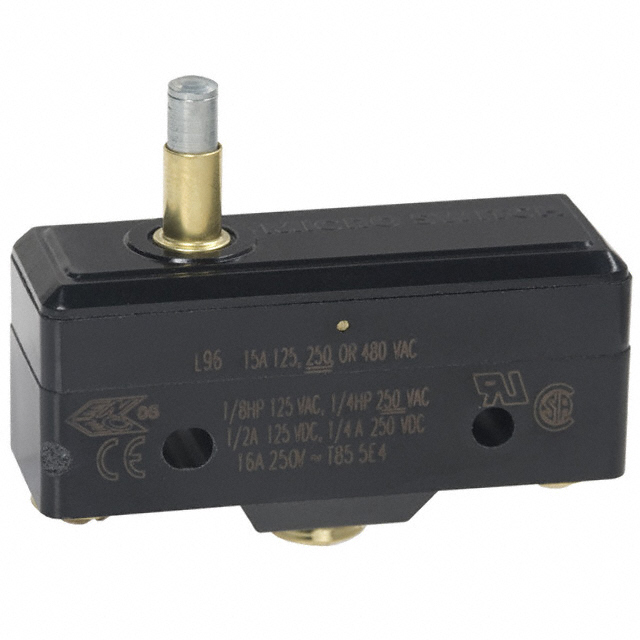

BZ-2RS-A2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2RS-A2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2RS-A2
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6473 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$8.46	$6.73	$6.305	$6.033
	$5.798	$5.522	$5.328

Product parameter
Data sheet

Product parameter

Part Number	BZ-2RS-A2	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6473 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZ
Release Force	113gf	Pretravel	0.015" (0.4mm)
Packaging	Bulk	Overtravel	0.060" (1.5mm)
Other Names	480-2430 BZ2RSA2	Operating Temperature	-55°C ~ 85°C
Operating Position	1.110" (28.2mm)	Operating Force	255 ~ 368gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	Steel Plunger	Electrical Life	-
Differential Travel	0.002" (0.05mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Overtravel Plunger
