Home > Products > Switches > Snap Action, Limit Switches > BZ-2RN784

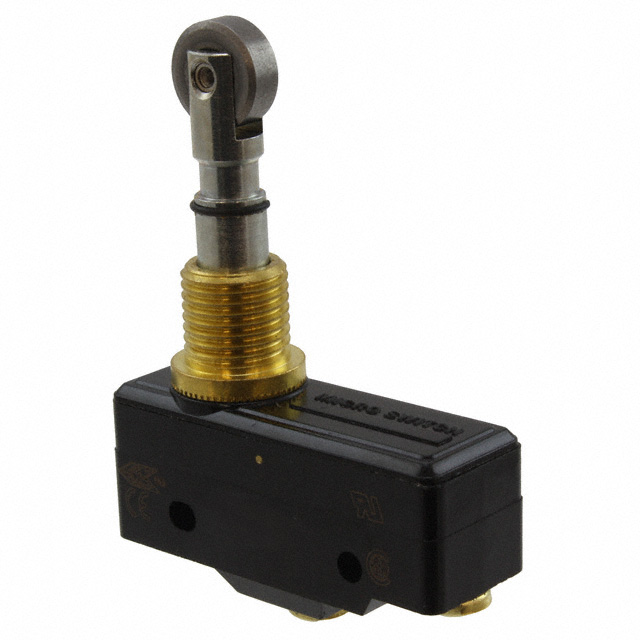

BZ-2RN784

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2RN784 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2RN784
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 2968 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$17.459	$14.462	$13.838
	$13.299	$12.666	$12.222

Product parameter
Data sheet

Product parameter

Part Number	BZ-2RN784	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2968 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZ
Release Force	135gf	Pretravel	0.015" (0.4mm)
Packaging	Bulk	Overtravel	0.219" (5.6mm)
Other Names	480-4598 BZ-2RN784-ND BZ2RN784	Operating Temperature	-55°C ~ 85°C
Operating Position	2.232" (56.7mm)	Operating Force	255 ~ 368gf
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.002" (0.05mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Roller Plunger
