Home > Products > Switches > Snap Action, Limit Switches > BM-1R2420

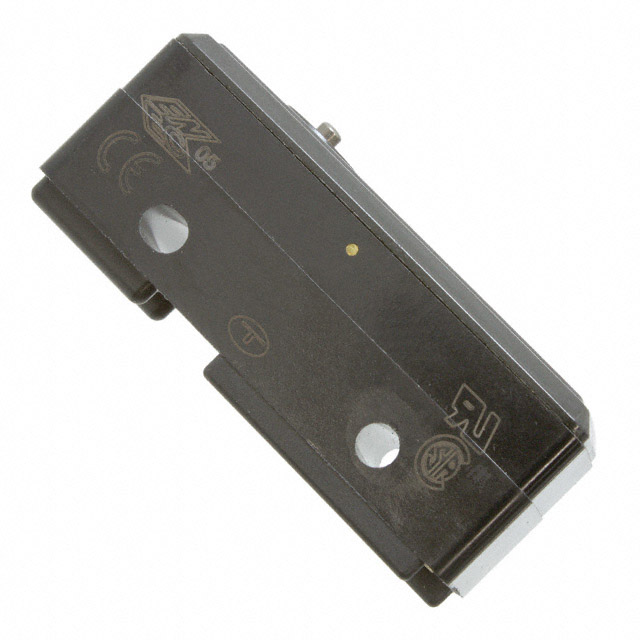

BM-1R2420

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM-1R2420 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BM-1R2420
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 22A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8219 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$4.613

Product parameter
Data sheet

Product parameter

Part Number	BM-1R2420	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 22A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8219 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	BM	Release Force	113gf
Pretravel	0.015" (0.4mm)	Packaging	Bulk
Overtravel	0.005" (0.13mm)	Other Names	480-4537 BM-1R2420-ND BM1R2420
Operating Temperature	-55°C ~ 121°C	Operating Position	0.625" (15.9mm)
Operating Force	198 ~ 283gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	0.001" (0.025mm)
Current Rating	22A (AC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
