Home > Products > Switches > Snap Action, Limit Switches > 6AS16

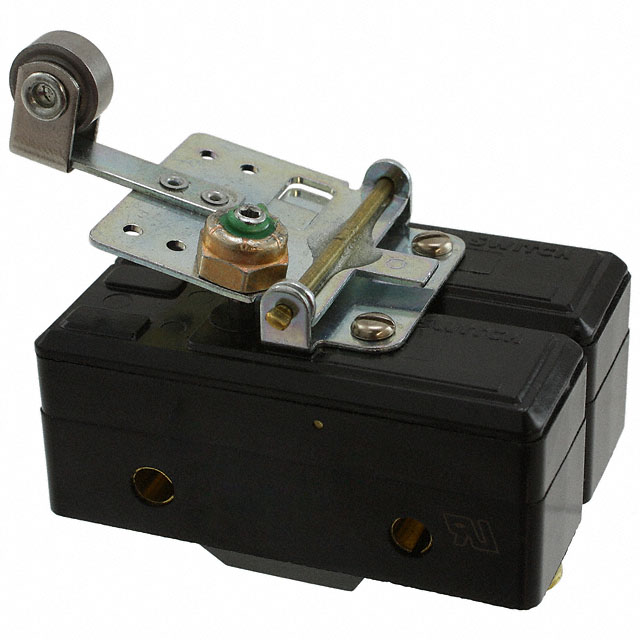

6AS16

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6AS16 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	6AS16
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDTX2 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1771 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$24.588	$20.367	$19.489	$18.73	$17.838

Product parameter
Data sheet

Product parameter

Part Number	6AS16	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDTX2 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1771 pcs	Data sheet	BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	AS
Release Force	113gf	Pretravel	-
Packaging	Bulk	Overtravel	0.040" (1.0mm)
Other Names	480-4302 6AS16-ND	Operating Temperature	-55°C ~ 85°C
Operating Position	1.219" (31.0mm)	Operating Force	397gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.156" (4.0mm)	Current Rating	20A (AC), 500mA (DC)
Circuit	SPDT x 2	Actuator Type	Lever, Roller
