Home > Products > Switches > Toggle Switches > 2TL1-8F

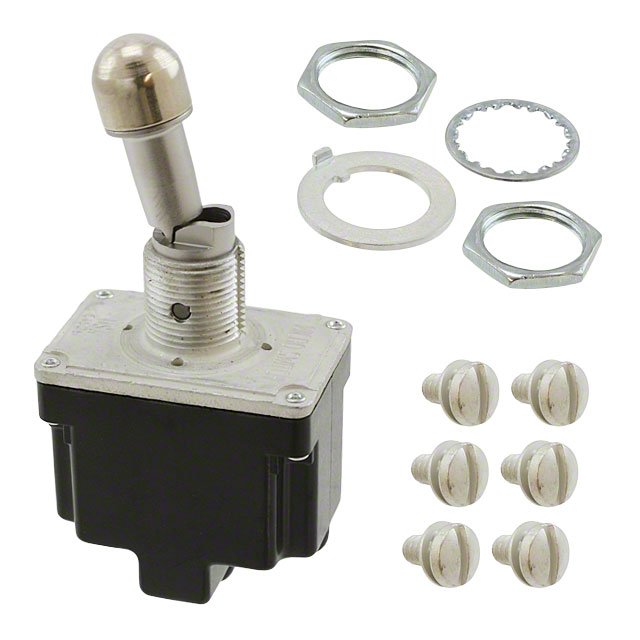

2TL1-8F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2TL1-8F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2TL1-8F
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH TOGGLE DPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1892 pcs
Reference Price (In US Dollars)	8 pcs
Reference Price (In US Dollars)	$15.872

Product parameter
Data sheet

Product parameter

Part Number	2TL1-8F	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH TOGGLE DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1892 pcs	Data sheet	Toggle Switch Line Guide TL Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	TL	Panel Cutout Dimensions	Circular - 12.40mm Dia
Packaging	Bulk	Other Names	2TL1-8F-ND 2TL18F 480-4215
Operating Temperature	-65°C ~ 71°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	Environment Proof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	-	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	10A (AC)	Circuit	DPDT
Bushing Thread	15/32-32	Actuator Type	Locking Lever
Actuator Material	Nickel Plated	Actuator Length	26.67mm
