Home > Products > Switches > Pushbutton Switches > 2D9

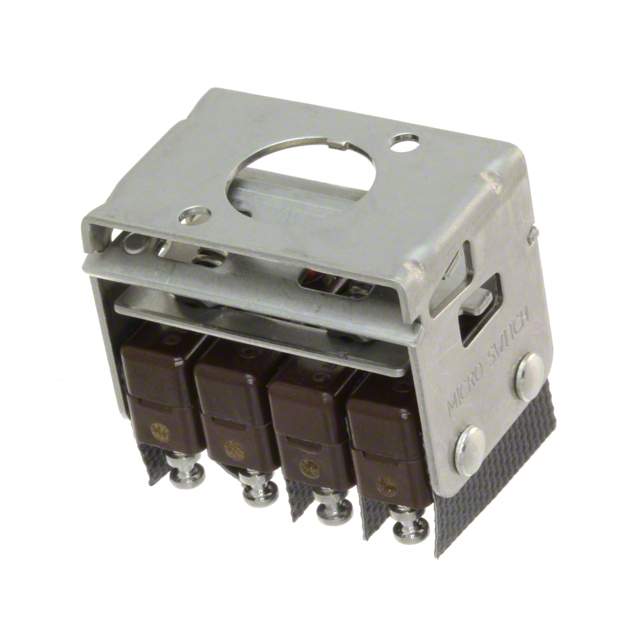

2D9

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2D9 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2D9
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SW PUSHBUTTON SPDTX4 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 464 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$71.661	$70.621	$68.544	$64.39

Product parameter
Data sheet

Product parameter

Part Number	2D9	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SW PUSHBUTTON SPDTX4 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	464 pcs	Data sheet	2 Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder Turret	Switch Function	On-Mom
Series	2	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	480-6811
Operating Temperature	-	Mounting Type	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	-	Detailed Description	Pushbutton Switch SPDT x 4 Standard
Current Rating	5A (AC/DC)	Color - Actuator/Cap	-
Circuit	SPDT x 4	Actuator Type	-
