Home > Products > Switches > Snap Action, Limit Switches > 21SM284

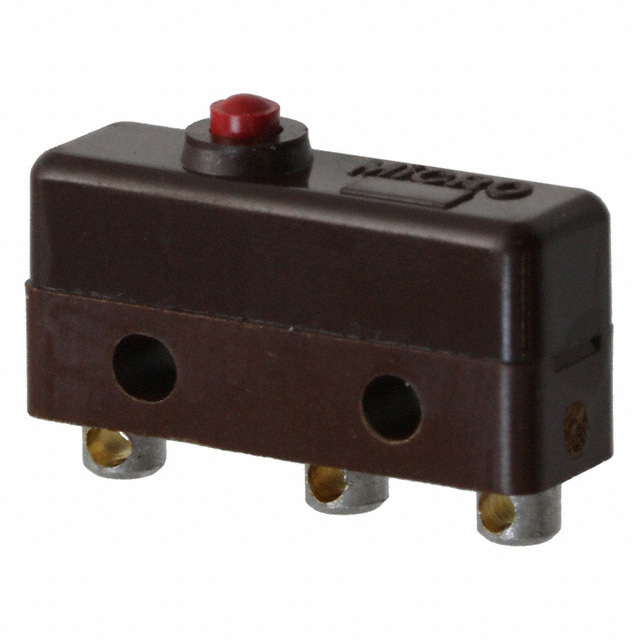

21SM284

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 21SM284 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	21SM284
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 115V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 10488 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$5.792	$4.493	$4.257	$4.02
	$3.665	$3.429	$3.311	$3.193

Product parameter
Data sheet

Product parameter

Part Number	21SM284	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10488 pcs	Data sheet	SM Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	115V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	SM
Release Force	28gf	Pretravel	0.030" (0.8mm)
Packaging	Bulk	Overtravel	0.005" (0.13mm)
Other Names	21SM284-ND 480-3731	Operating Temperature	-55°C ~ 125°C
Operating Position	0.330" (8.4mm)	Operating Force	141gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	80,000 Cycles	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.004" (0.1mm)	Current Rating	5A (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
