Home > Products > Switches > Snap Action, Limit Switches > 1XE301

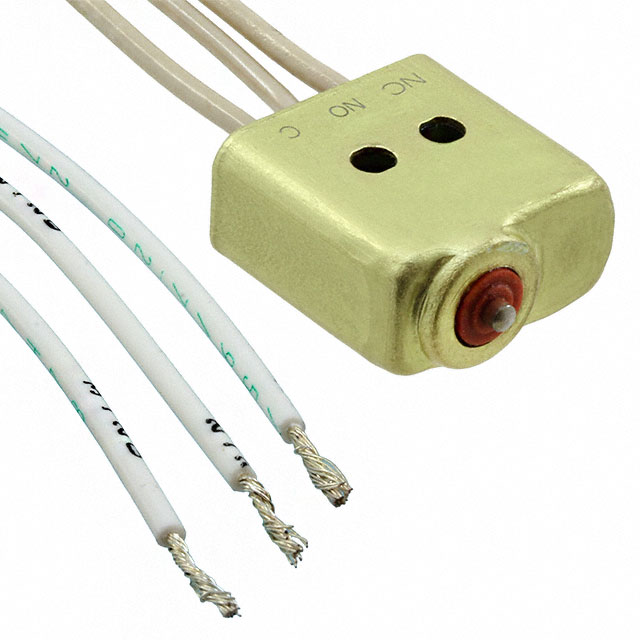

1XE301

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1XE301 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1XE301
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH PIN PLUNGER SPDT 1A 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 715 pcs
Reference Price (In US Dollars)	3 pcs
Reference Price (In US Dollars)	$42.757

Product parameter
Data sheet

Product parameter

Part Number	1XE301	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH PIN PLUNGER SPDT 1A 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	715 pcs	Data sheet	SE, XE Series Datasheet SE, XE Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Termination Style	Wire Leads	Switch Function	On-Mom
Series	XE	Release Force	113gf
Pretravel	0.050" (1.27mm)	Packaging	Bulk
Overtravel	0.004" (0.1mm)	Other Names	1XE301-ND 480-6010
Operating Temperature	-54°C ~ 105°C	Operating Position	0.425" (10.8mm)
Operating Force	141 ~ 482gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Cable Length 1'
Electrical Life	-	Differential Travel	0.005" (0.13mm)
Current Rating	1A (DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
