Home > Products > Switches > Toggle Switches > 1TL1-5M

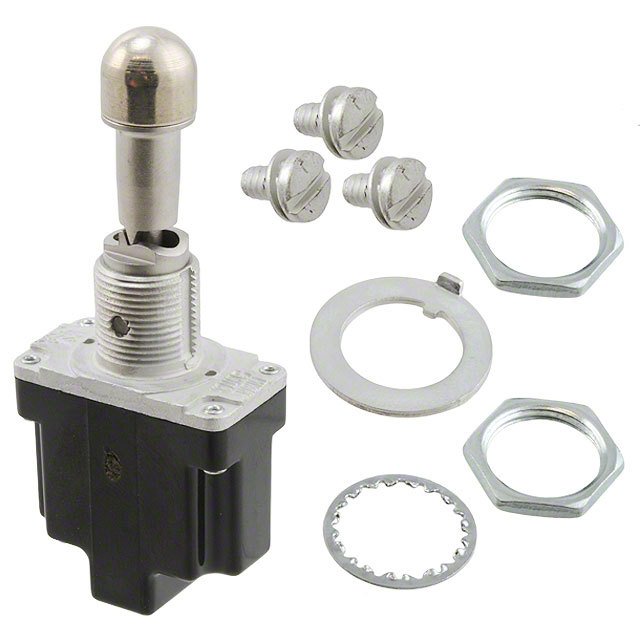

1TL1-5M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1TL1-5M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1TL1-5M
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH TOGGLE SPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 2856 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$14.668	$13.805	$12.942
	$12.08	$11.648	$11.217

Product parameter
Data sheet

Product parameter

Part Number	1TL1-5M	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH TOGGLE SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2856 pcs	Data sheet	TL Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Off-Mom
Series	TL	Panel Cutout Dimensions	Circular - 12.40mm Dia
Packaging	Bulk	Other Names	1TL1-5M-ND 1TL15M 480-3424
Operating Temperature	-65°C ~ 71°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	Environment Proof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	-	Detailed Description	Toggle Switch SPDT Panel Mount
Current Rating	10A (AC)	Circuit	SPDT
Bushing Thread	15/32-32	Actuator Type	Locking Lever
Actuator Material	Nickel Plated	Actuator Length	26.67mm
