Home > Products > Switches > Snap Action, Limit Switches > 1DM2

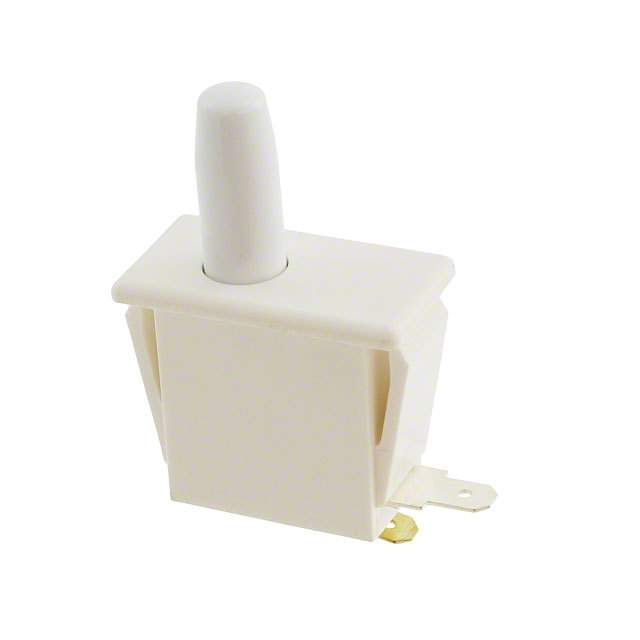

1DM2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1DM2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1DM2
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPST-NC 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 16232 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.03	$2.947	$2.759	$2.606
	$2.442	$2.336	$2.245	$2.138

Product parameter
Data sheet

Product parameter

Part Number	1DM2	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPST-NC 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16232 pcs	Data sheet	DM, DP Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Mom
Series	DM	Release Force	85gf
Pretravel	-	Packaging	Bulk
Overtravel	0.375" (9.5mm)	Other Names	1DM2-ND 480-5649
Operating Temperature	-37°C ~ 82°C	Operating Position	0.750" (19.1mm)
Operating Force	425gf	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	0.045" (1.1mm)
Current Rating	10A (AC)	Circuit	SPST-NC
Actuator Type	Round (Pin Plunger)
