Home > Products > Switches > Snap Action, Limit Switches > 11SM1-H58

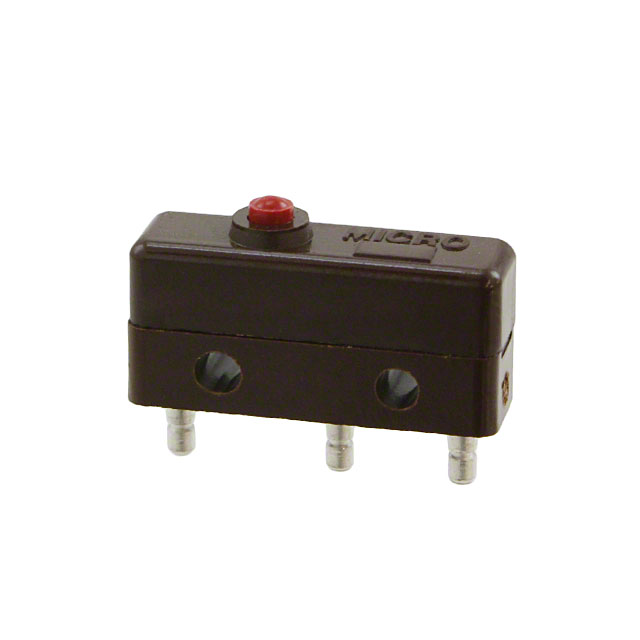

11SM1-H58

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 11SM1-H58 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	11SM1-H58
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17572 pcs
Reference Price (In US Dollars)	140 pcs
Reference Price (In US Dollars)	$2.234

Product parameter
Data sheet

Product parameter

Part Number	11SM1-H58	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17572 pcs	Data sheet	SM Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	250V	Termination Style	Quick Connect - 0.058" (Round)
Switch Function	On-Mom	Series	SM
Release Force	28gf	Pretravel	0.020" (0.5mm)
Packaging	Bulk	Overtravel	0.005" (0.13mm)
Other Names	11SM1-H58-ND 11SM1H58 480-3948	Operating Temperature	-55°C ~ 125°C
Operating Position	0.330" (8.4mm)	Operating Force	141gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.004" (0.1mm)	Current Rating	5A (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
