HI-8190PCTF

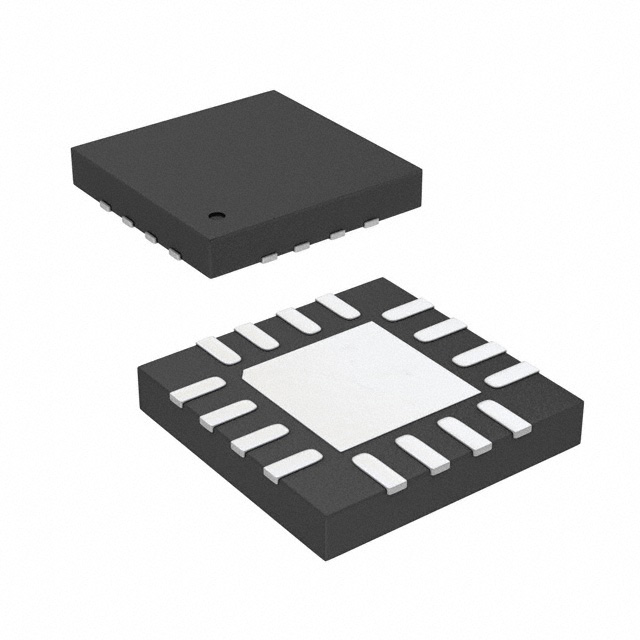

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HI-8190PCTF with confidence from Components-World.HK, 1 Year Warranty
Dowload HI-8190PCTF Details in PDFSee Product Specifications for product details.
Buy HI-8190PCTF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HI-8190PCTF |
|---|---|
| Manufacturer | Holt Integrated Circuits, Inc. |
| Description | IC ANALOG SWITCH 4 X SPST 16CSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 370 pcs | ||||
|---|---|---|---|---|---|
| $2.675 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HI-8190PCTF | Manufacturer | Holt Integrated Circuits, Inc. |
|---|---|---|---|
| Description | IC ANALOG SWITCH 4 X SPST 16CSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12924 pcs | Data sheet | HI-8190/91/92 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 3.3 V ~ 15 V |
| Voltage - Supply, Dual (V±) | ±3.3 V ~ 15 V | Switch Time (Ton, Toff) (Max) | 35ns, 20ns (Typ) |
| Switch Circuit | SPST - NO | Supplier Device Package | 16-CSP (5x5) |
| Series | - | Packaging | Tube |
| Package / Case | 16-WQFN Exposed Pad, CSP | Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 17 Ohm | Number of Circuits | 4 |
| Multiplexer/Demultiplexer Circuit | 1:1 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 4 Circuit IC Switch 1:1 17 Ohm 16-CSP (5x5) | Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - | Charge Injection | 4pC |
| Channel-to-Channel Matching (ΔRon) | - | Channel Capacitance (CS(off), CD(off)) | 5pF |
| -3db Bandwidth | - |
