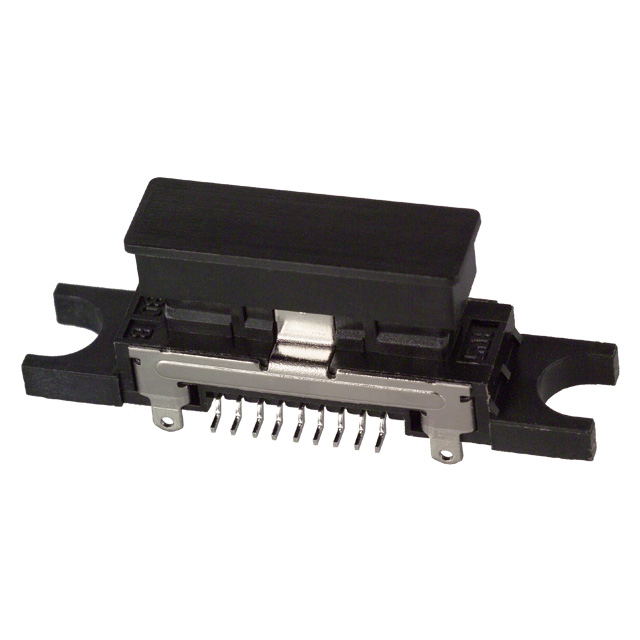

ST80X-18S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST80X-18S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST80X-18S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST80X-18S |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG 18POS SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST80X-18S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG 18POS SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4773 pcs | Data sheet | ST シリーズ |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | - | Series | ST |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | H1956TR | Operating Temperature | -30°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.378" (9.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Mounting Flange, Shielded | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount 18 position 0.039" (1.00mm) | Current Rating | 0.5A |
| Contact Type | Non-Gendered | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Cradle |
| Applications | - |
