ST60-18P

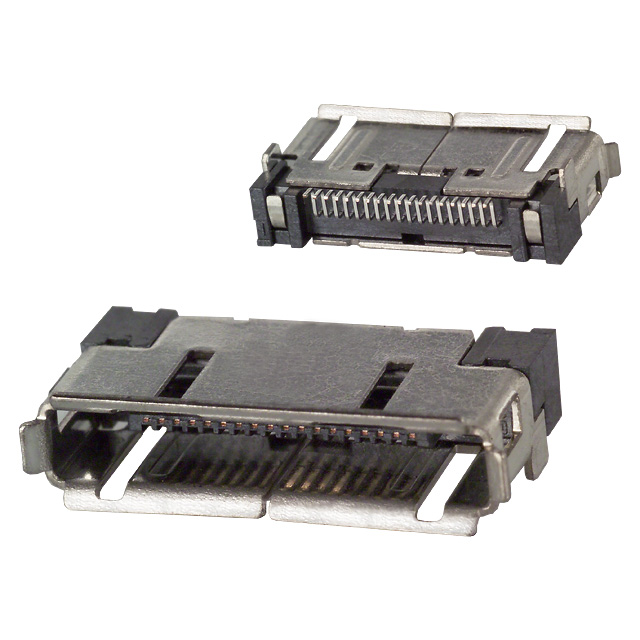

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST60-18P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST60-18P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST60-18P |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 18POS SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.721 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST60-18P | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 18POS SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 44898 pcs | Data sheet | ST シリーズ |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | ST | Row Spacing - Mating | - |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | *ST60-18P H1955CT ST6018P |
Operating Temperature | -30°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Board Edge, Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.118" (3.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Shielded | Fastening Type | Latch Holder |
| Detailed Description | 18 Position Receptacle Connector 0.020" (0.50mm) Board Edge, Surface Mount, Right Angle Gold | Current Rating | 0.5A |
| Contact Type | Non-Gendered | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Telecommunications |
