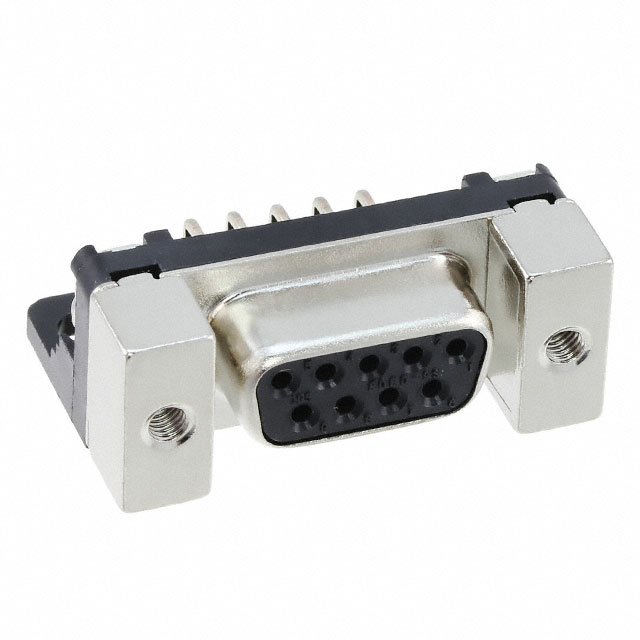

RDED-9SE-LN(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RDED-9SE-LN(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RDED-9SE-LN(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RDED-9SE-LN(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.908 | $2.789 | $2.546 | $2.425 | $2.304 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | RDED-9SE-LN(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16116 pcs | Data sheet | RDxD Series |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 350V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Nickel Plated |
| Series | RD*D | Packaging | Tray |
| Other Names | H122904 | Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (M2.6) |
| Features | Board Lock | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 8.00µin (0.203µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
