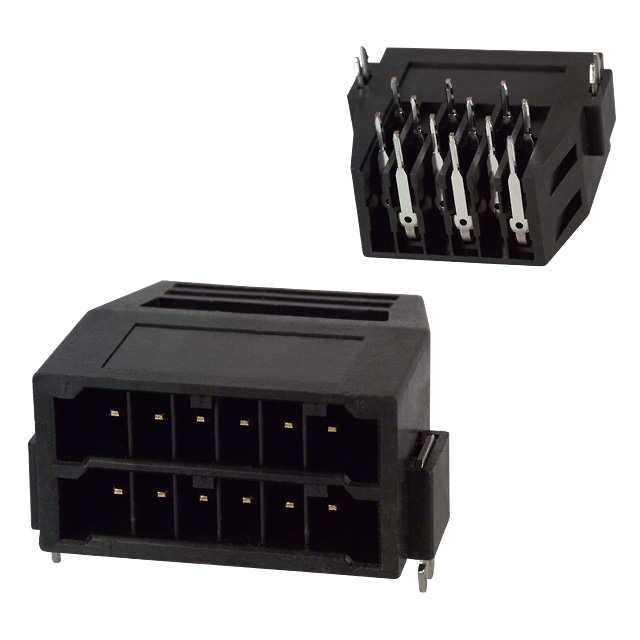

PX10-AF6WP(30)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PX10-AF6WP(30) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PX10-AF6WP(30) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PX10-AF6WP(30) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT RT ANG 12 POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 48 pcs | ||||
|---|---|---|---|---|---|
| $1.468 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PX10-AF6WP(30) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT RT ANG 12 POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25289 pcs | Data sheet | PX Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PX |
| Row Spacing - Mating | - | Pitch - Mating | 0.134" (3.40mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 236-0001-0-30 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.583" (14.80mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.134" (3.40mm) | Current Rating | 10A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.177" (4.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
