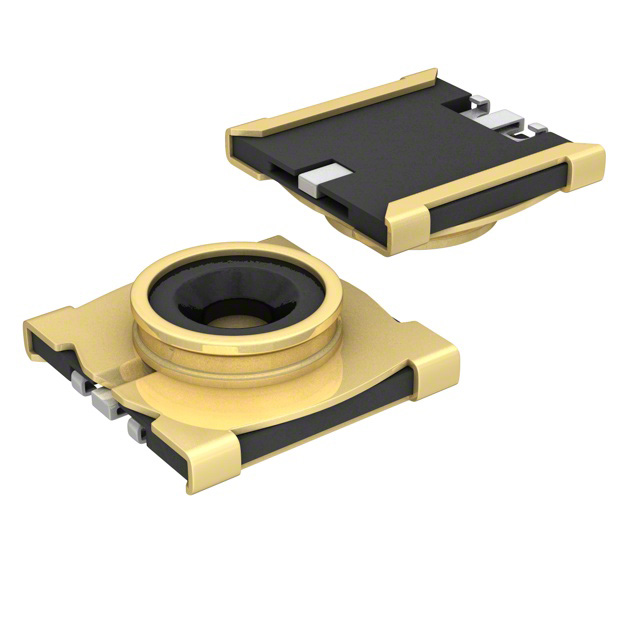

MS-180(20)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS-180(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS-180(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS-180(20) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN COAX JACK STR 50 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.078 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS-180(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN COAX JACK STR 50 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 263129 pcs | Data sheet | MS-180(20)MS-180 Series Brochure |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | MS-180 | Packaging | Tape & Reel (TR) |
| Other Names | H121965TR | Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Surface Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 100 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.3dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 11GHz | Features | Internal Switch |
| Fastening Type | Snap-On | Dielectric Material | Liquid Crystal Polymer (LCP) |
| Detailed Description | Coaxial Switch - 2.24mm Plug Dia Connector Receptacle, Female Socket 50 Ohm Surface Mount Solder | Contact Termination | Solder |
| Connector Type | Receptacle, Female Socket | Connector Style | Coaxial Switch - 2.24mm Plug Dia |
| Center Contact Plating | Gold | Center Contact Material | Copper Alloy |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
