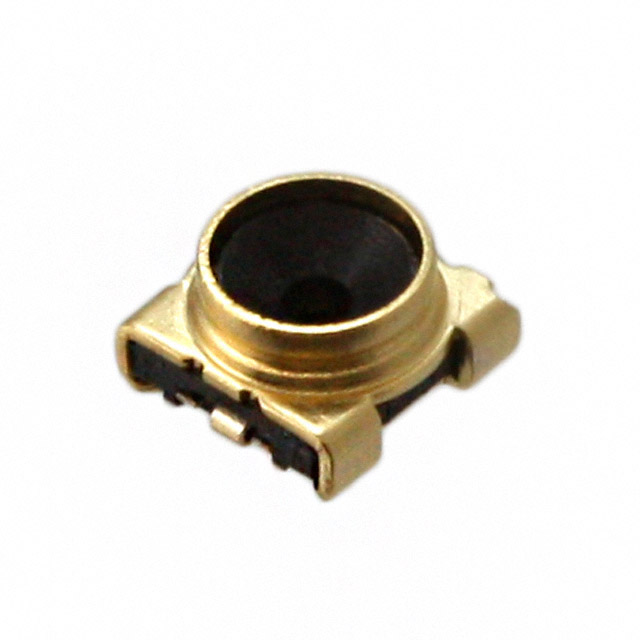

MS-156C3(20)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS-156C3(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS-156C3(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS-156C3(20) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN COAX SWITCH RCPT STR 50OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | |||
|---|---|---|---|---|---|
| $0.086 | $0.081 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS-156C3(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN COAX SWITCH RCPT STR 50OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 280291 pcs | Data sheet | MS-156C3 DrawingMS-156C Series |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | MS-156C | Packaging | Tape & Reel (TR) |
| Other Names | H124920TR | Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Surface Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 100 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.4dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 11GHz | Features | Internal Switch |
| Fastening Type | Snap-On | Dielectric Material | Polyamide (PA), Nylon 6T |
| Detailed Description | Coaxial Switch - 4mm Plug Dia Connector Receptacle, Female Socket 50 Ohm Surface Mount Solder | Contact Termination | Solder |
| Connector Type | Receptacle, Female Socket | Connector Style | Coaxial Switch - 4mm Plug Dia |
| Center Contact Plating | Gold | Center Contact Material | Copper Alloy |
| Cable Group | - | Body Material | Phosphor Bronze |
| Body Finish | Gold |
