MS-145(06)

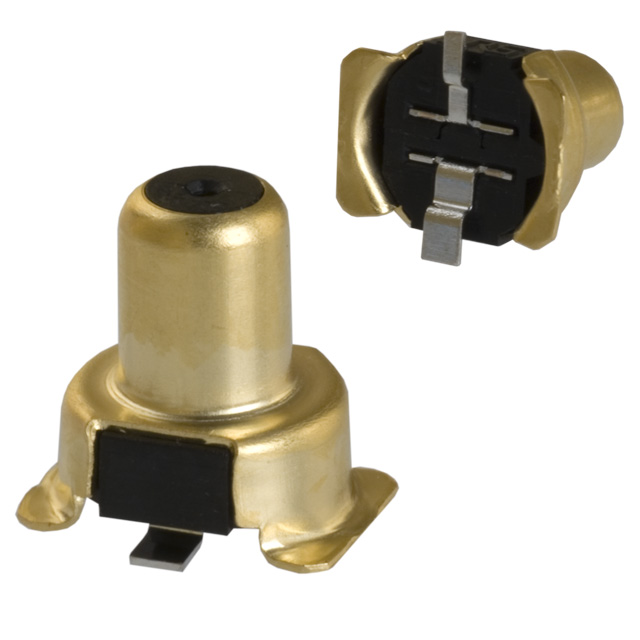

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS-145(06) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS-145(06) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS-145(06) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN COAX SWITCH RCPT STR 50OHM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS-145(06) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN COAX SWITCH RCPT STR 50OHM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5596 pcs | Data sheet | MS-145 シリーズ |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | MS-145 | Packaging | Tape & Reel (TR) |
| Other Names | H2803 H2803-ND H2803TR |
Operating Temperature | -30°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Surface Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10000 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Loss | 0.6dB | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 2.5GHz |
| Features | Internal Switch | Fastening Type | Push-Pull |
| Dielectric Material | Polyamide (PA), Nylon | Detailed Description | Coaxial Switch - 4.15mm Plug Dia Connector Receptacle, Female Socket 50 Ohm Surface Mount Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | Coaxial Switch - 4.15mm Plug Dia | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Phosphor Bronze | Body Finish | Gold |
