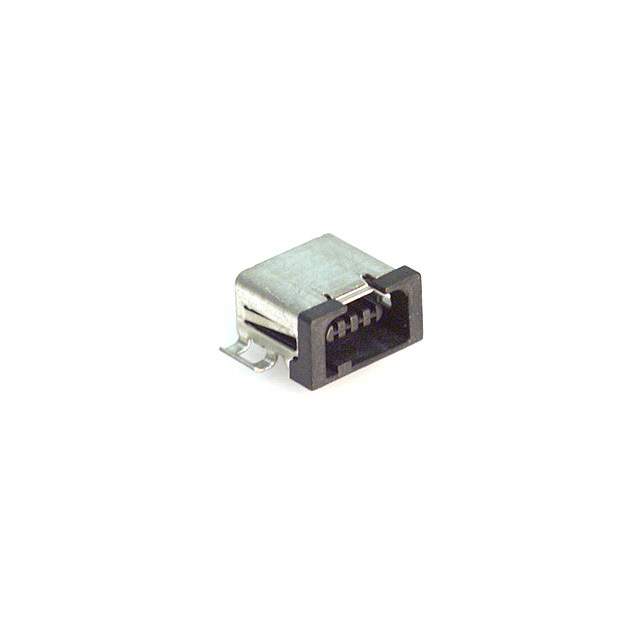

MQ172X-4PA(30)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MQ172X-4PA(30) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MQ172X-4PA(30) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MQ172X-4PA(30) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT 4POS SMT LOW PROFILE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.638 | $0.577 | $0.542 | $0.518 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.495 | $0.447 | $0.412 | $0.353 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MQ172X-4PA(30) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 4POS SMT LOW PROFILE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63052 pcs | Data sheet | MQ172 Series |
| Category | Connectors, Interconnects | Voltage Rating | 30VDC, 40VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | MQ172 | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Bulk |
| Other Names | 206-2000-6-30 H125250 |
Operating Temperature | -30°C ~ 75°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.154" (3.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Shielded, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 4 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold |
| Current Rating | 2A or 0.5A, 3A | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
