MQ172-3PA

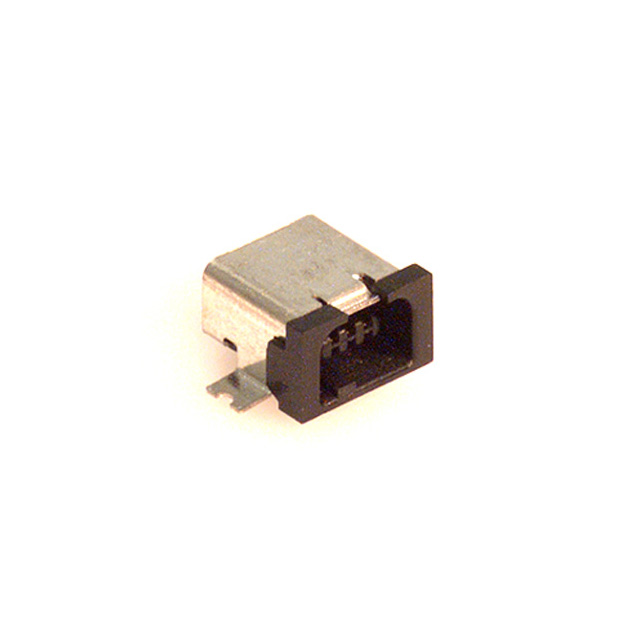

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MQ172-3PA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MQ172-3PA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MQ172-3PA |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 3POS SMT LOW PROFILE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MQ172-3PA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 3POS SMT LOW PROFILE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6000 pcs | Data sheet | MQ172 Series |
| Category | Connectors, Interconnects | Voltage Rating | 30VDC, 40VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | MQ172 | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Bulk |
| Other Names | *MQ172-3PA H2792 MQ172-3PA-ND |
Operating Temperature | -30°C ~ 75°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.154" (3.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 3 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold | Current Rating | 3A |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Telecommunications |
