Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Receptacles, Fem > MDF7-46D-2.54DSA(56)

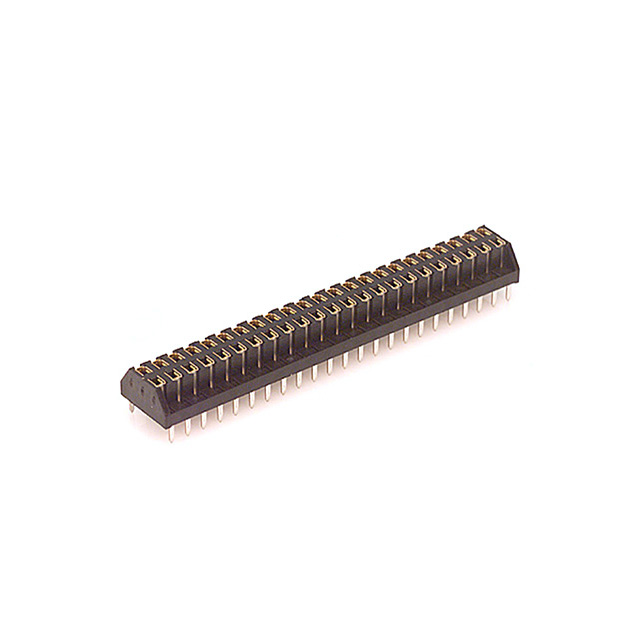

MDF7-46D-2.54DSA(56)

MDF7-46D-2.54DSA(56)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF7-46D-2.54DSA(56) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number MDF7-46D-2.54DSA(56)
Manufacturer Hirose
Description CONN RECEPT 46POS DOUBLE GOLD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 5865 pcs
Reference Price
(In US Dollars)		Get a quote

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.00

Product parameter

Part Number MDF7-46D-2.54DSA(56) Manufacturer Hirose
Description CONN RECEPT 46POS DOUBLE GOLD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5865 pcs Data sheet MDF7 Series
Category Connectors, Interconnects Voltage Rating 250VAC
Termination Solder Style Board to Board
Series MDF7 Row Spacing - Mating 0.100" (2.54mm)
Pitch - Mating 0.100" (2.54mm) Packaging Bulk
Other Names *MDF7-46D-2.54DSA(56)
H10684		 Operating Temperature -35°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 46 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyamide (PA), Nylon Insulation Height 0.197" (5.00mm)
Insulation Color Black Ingress Protection -
Features - Fastening Type Push-Pull
Detailed Description 46 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Gold Current Rating 3A
Contact Type Female Socket Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.118" (3.00mm)
Contact Finish Thickness - Post 39.4µin (1.00µm) Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Receptacle, Bottom Entry Applications -
