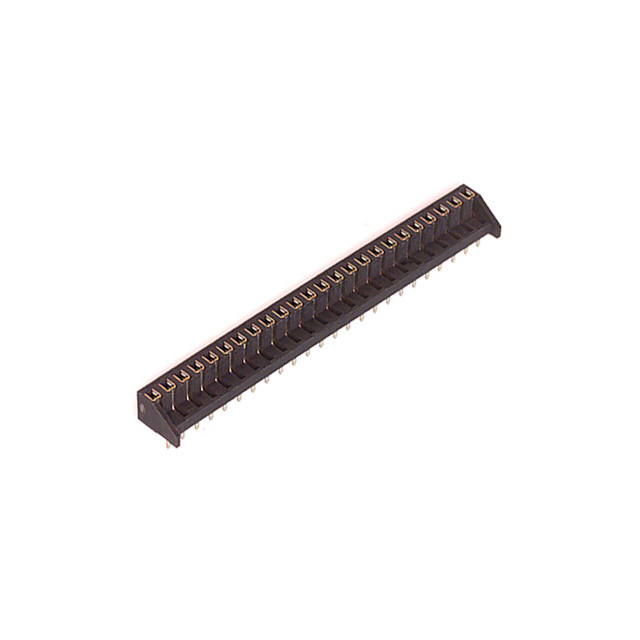

MDF7-24S-2.54DSA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF7-24S-2.54DSA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDF7-24S-2.54DSA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDF7-24S-2.54DSA |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 24POS SINGLE TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDF7-24S-2.54DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 24POS SINGLE TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4720 pcs | Data sheet | MDF7 Series |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board |
| Series | MDF7 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | *MDF7-24S-2.54DSA H2569 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.197" (5.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 24 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Receptacle, Bottom Entry | Applications | - |
