Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Receptacles, Fem > MDF7-22S-2.54DSA(55)

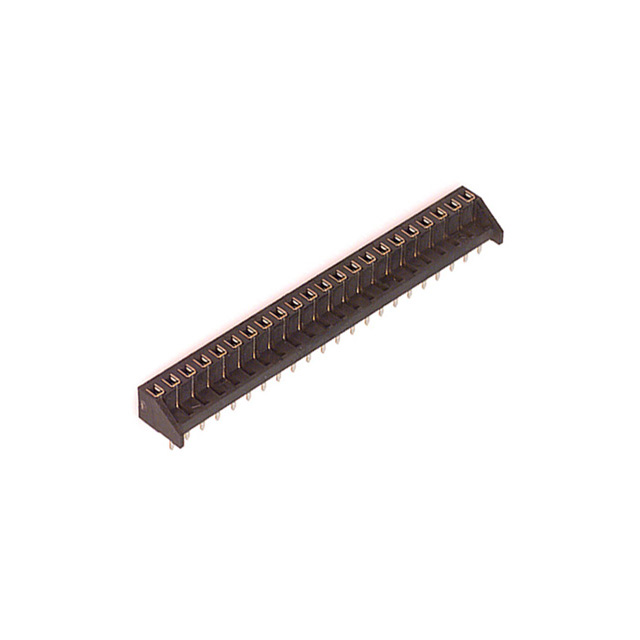

MDF7-22S-2.54DSA(55)

MDF7-22S-2.54DSA(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF7-22S-2.54DSA(55) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number MDF7-22S-2.54DSA(55)
Manufacturer Hirose
Description CONN RECEPT 22POS SINGLE TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 70839 pcs
Reference Price
(In US Dollars)		100 pcs
$0.538

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.538

Product parameter

Part Number MDF7-22S-2.54DSA(55) Manufacturer Hirose
Description CONN RECEPT 22POS SINGLE TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 70839 pcs Data sheet MDF7 Series
Category Connectors, Interconnects Voltage Rating 250VAC
Termination Solder Style Board to Board
Series MDF7 Row Spacing - Mating -
Pitch - Mating 0.100" (2.54mm) Packaging Bulk
Other Names *MDF7-22S-2.54DSA(55)
H10671		 Operating Temperature -35°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 22 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon
Insulation Height 0.197" (5.00mm) Insulation Color Black
Ingress Protection - Features -
Fastening Type Push-Pull Detailed Description 22 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin
Current Rating 3A Contact Type Female Socket
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post 0.118" (3.00mm) Contact Finish Thickness - Post 78.7µin (2.00µm)
Contact Finish Thickness - Mating 78.7µin (2.00µm) Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Receptacle, Bottom Entry
Applications -
