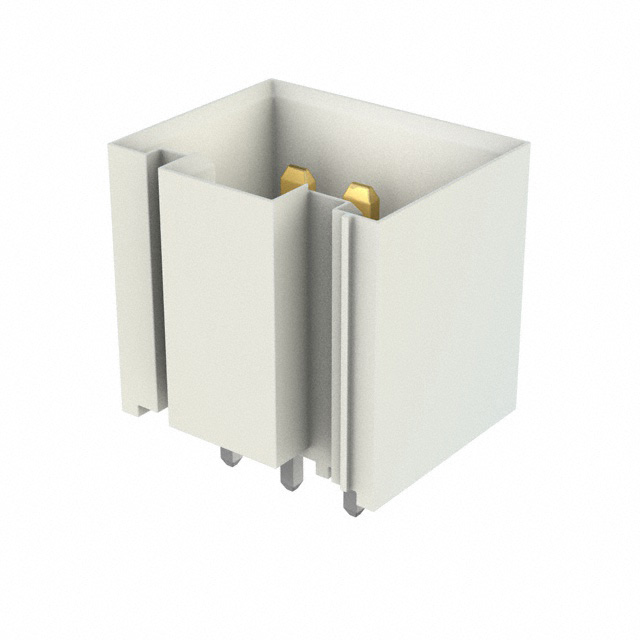

MDF6-6DP-3.5DSA(06)

MDF6-6DP-3.5DSA(06)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF6-6DP-3.5DSA(06) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number MDF6-6DP-3.5DSA(06)
Manufacturer Hirose
Description CONN HDR 6POS 3.5MM DIP
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 61330 pcs
Reference Price
(In US Dollars)		100 pcs
$0.334

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.334

Product parameter

Part Number MDF6-6DP-3.5DSA(06) Manufacturer Hirose
Description CONN HDR 6POS 3.5MM DIP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 61330 pcs Data sheet MDF6 Series
Category Connectors, Interconnects Voltage Rating 300V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series MDF6
Row Spacing - Mating 0.197" (5.00mm) Pitch - Mating 0.138" (3.50mm)
Packaging Bulk Overall Contact Length -
Other Names 547-0084-5-06 Operating Temperature -30°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 6 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon
Insulation Height 0.512" (13.00mm) Insulation Color White
Ingress Protection - Features -
Fastening Type Latch Holder Detailed Description Connector Header Through Hole 6 position 0.138" (3.50mm)
Current Rating - Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.138" (3.50mm) Contact Length - Mating 0.220" (5.59mm)
Contact Finish Thickness - Post 39.4µin (1.00µm) Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin-Copper Contact Finish - Mating Gold
Connector Type Header Applications -
