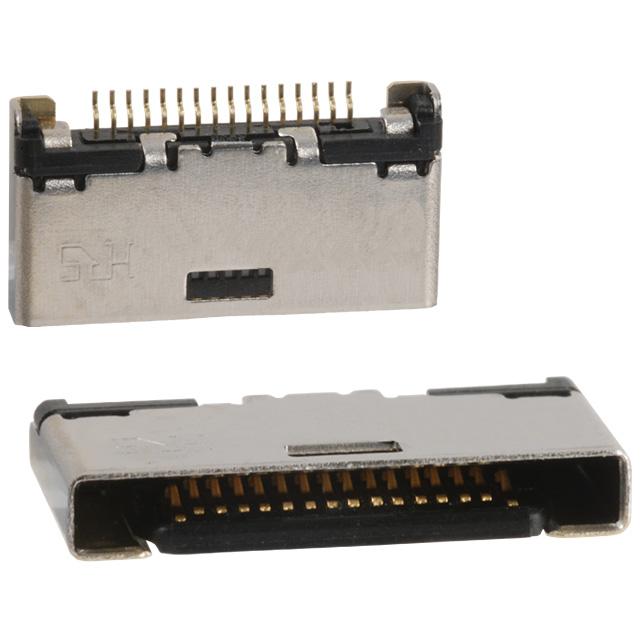

LX60-16S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LX60-16S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LX60-16S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LX60-16S |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT 16POS .5MM RT ANG SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.922 | $0.838 | $0.718 | $0.599 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LX60-16S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 16POS .5MM RT ANG SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60373 pcs | Data sheet | LX Series |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | LX | Row Spacing - Mating | - |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | *LX60-16S H11403CT |
Operating Temperature | -40°C ~ 70°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Friction Lock | Detailed Description | 16 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold |
| Current Rating | 0.5A | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
