JR25WPH-4P

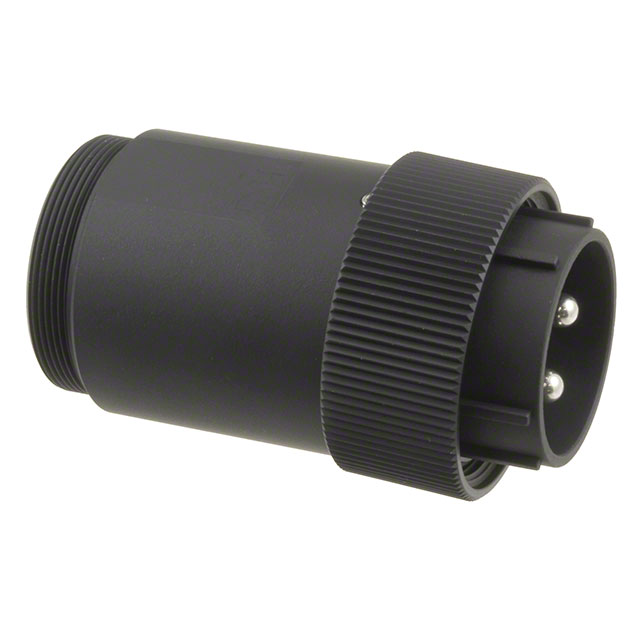

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JR25WPH-4P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JR25WPH-4P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JR25WPH-4P |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $16.197 | $14.621 | ||||
- Product parameter
Product parameter
| Part Number | JR25WPH-4P | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2073 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 300VAC, 420VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 25 |
| Shell Material | Aluminum Alloy | Shell Finish | Black Chromium |
| Series | JR-W | Packaging | Tray |
| Other Names | 114-2185-0-00 H124140 JR25WPH-4P-ND |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Plug, Male Pins Solder Cup Silver | Current Rating | 30A |
| Contact Material | Brass | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Plug, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | Brass, Black Chrome | Applications | Automotive, Industrial, Telecommunications |
