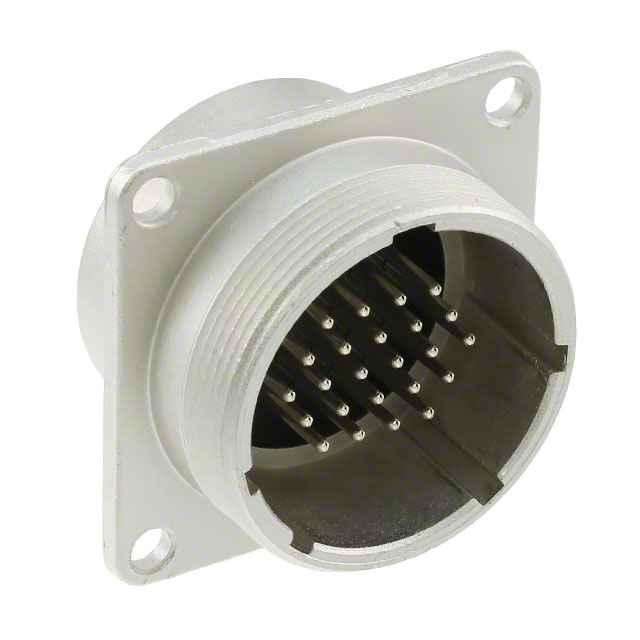

JR25RK-24P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JR25RK-24P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JR25RK-24P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JR25RK-24P |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT MALE 24POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $4.519 | $4.107 | $4.004 | $3.696 | $3.491 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JR25RK-24P | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT MALE 24POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9572 pcs | Data sheet | JR Series |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 25 |
| Shell Material | Aluminum Alloy | Shell Finish | Nickel |
| Series | JR | Packaging | Bulk |
| Other Names | 114-0524-2-00 H124135 JR25RK-24P-ND |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 24 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Phenol Formaldehyde (PF) | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 24 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Silver | Cable Opening | 1.098" (27.90mm) |
| Backshell Material, Plating | - | Applications | - |
