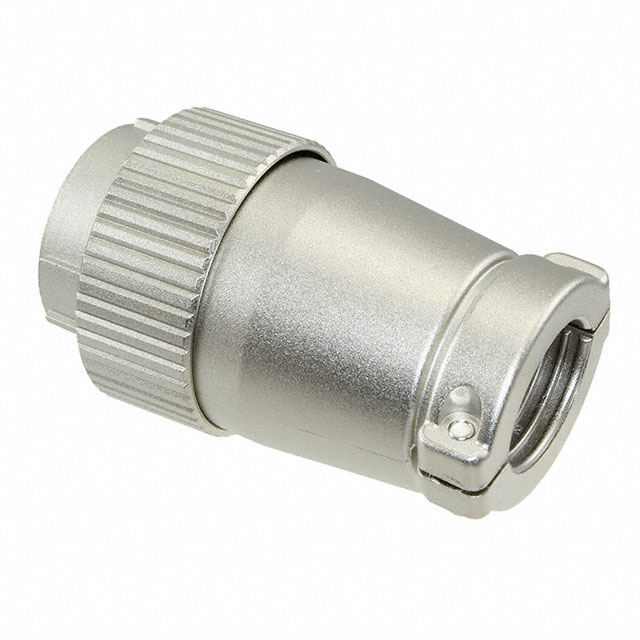

JR25PH-4S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JR25PH-4S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JR25PH-4S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JR25PH-4S |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $12.534 | $11.313 | $10.839 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JR25PH-4S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3411 pcs | Data sheet | JR25PH-4S DrawingJR25PH-4S Spec SheetJR Series |
| Category | Connectors, Interconnects | Voltage Rating | 1000VAC, 1400VDC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 25 |
| Shell Material | Aluminum Alloy | Shell Finish | Nickel |
| Series | JR | Packaging | Bulk |
| Other Names | 114-0627-5-00 H126265 JR25PH-4S-ND |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | - |
| Features | Backshell, Cable Clamp, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 30A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Silver | Cable Opening | 0.709" (18.00mm) |
| Backshell Material, Plating | Aluminum Alloy, Nickel | Applications | - |
