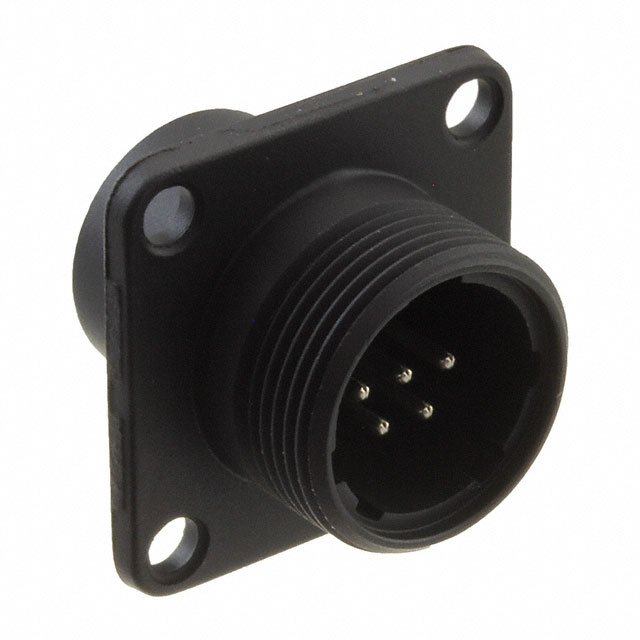

JR13WR-5P(72)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JR13WR-5P(72) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JR13WR-5P(72) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JR13WR-5P(72) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT MALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $4.283 | $3.895 | $3.797 | $3.505 | $3.311 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JR13WR-5P(72) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT MALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11736 pcs | Data sheet | JR13WR-5P(72) Spec SheetJR-W Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC, 140VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 13 |
| Shell Material | Aluminum Alloy | Shell Finish | Black Chromium |
| Series | JR-W | Packaging | Bulk |
| Other Names | 114-2024-0-72 H126261 JR13WR-5P(72)-ND |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Phenol Formaldehyde (PF) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 0.626" (15.90mm) |
| Backshell Material, Plating | - | Applications | Automotive, Industrial, Telecommunications |
